Description

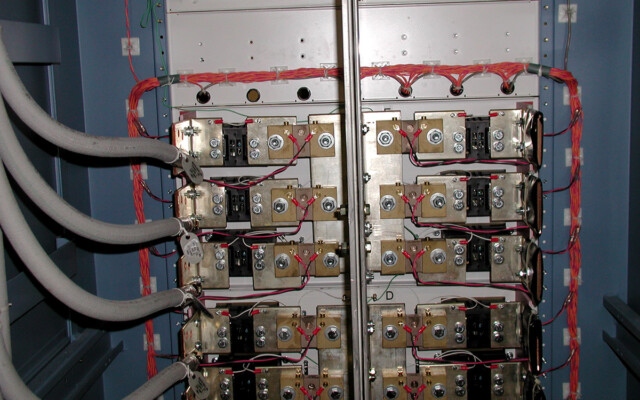

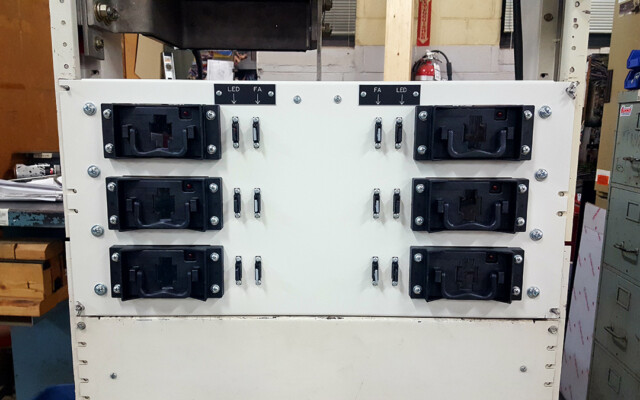

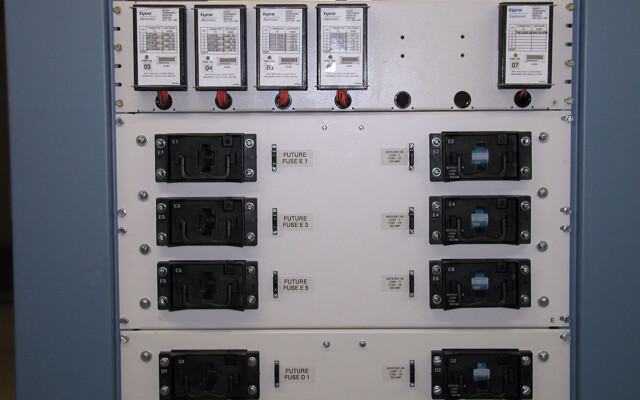

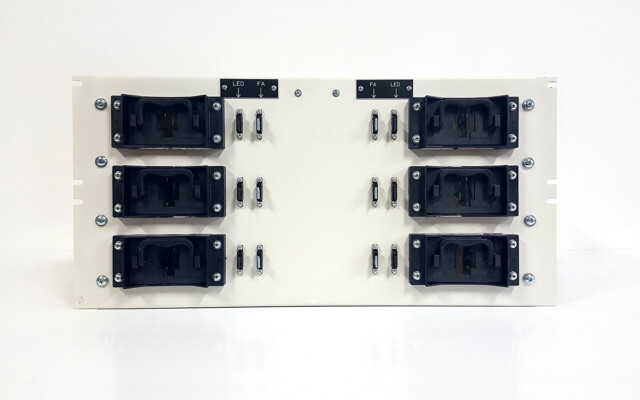

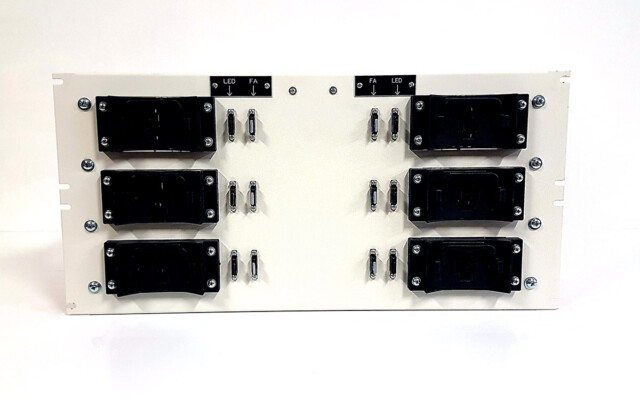

• The Gus Berthold S3880 fuse panel is a 6 load, 70-800A fuse panel designed for use in all Tyco Electronics J85500A2 power distribution cabinets
• Compact design mounts in 12 inches of vertical space

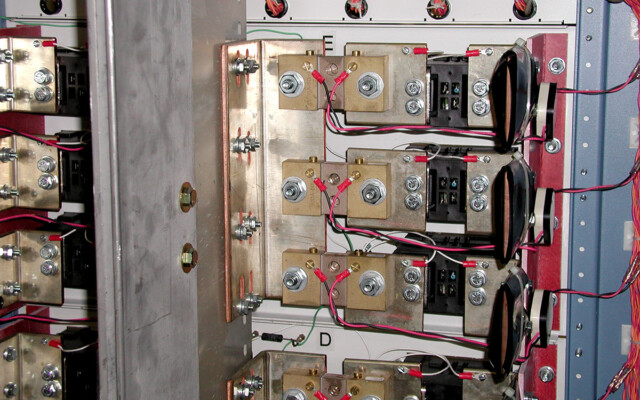

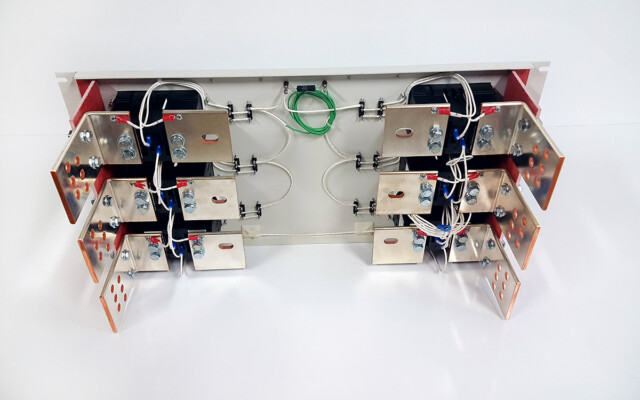

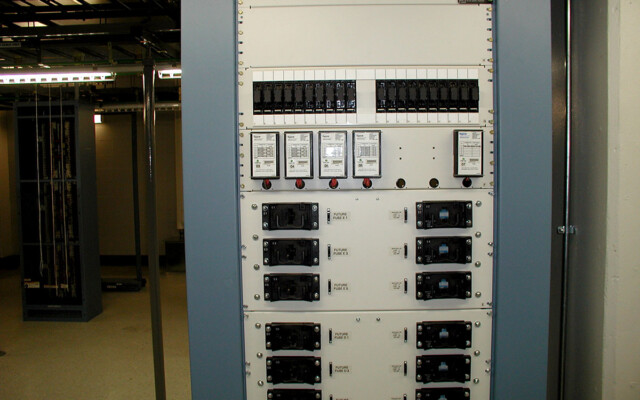

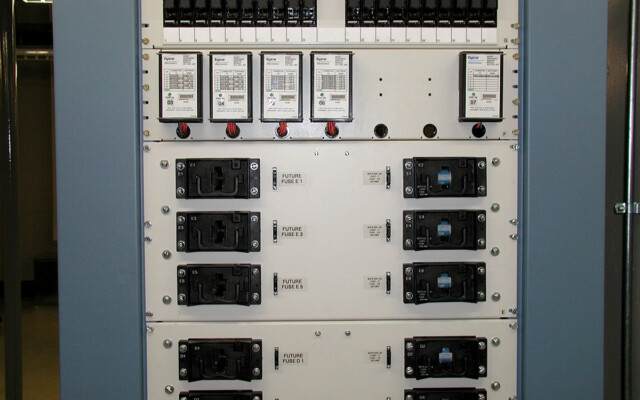

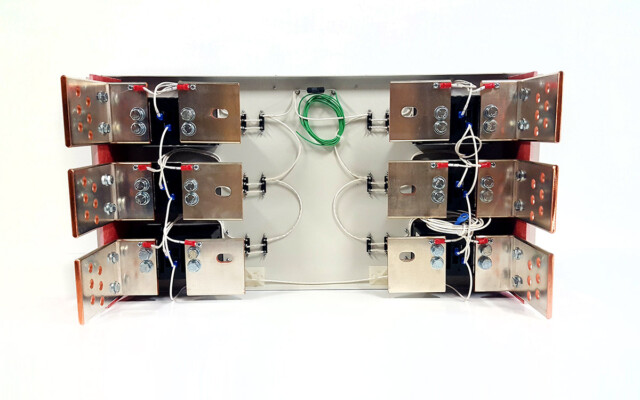

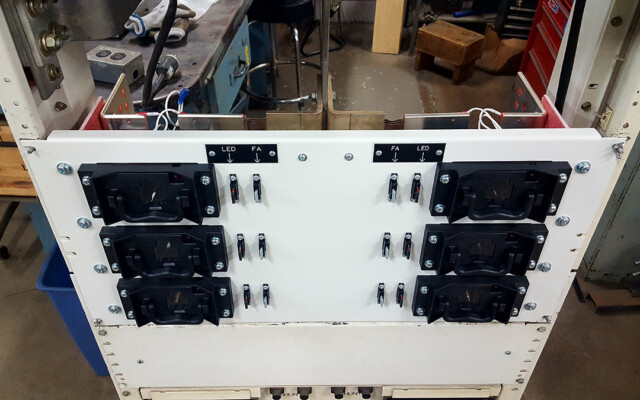

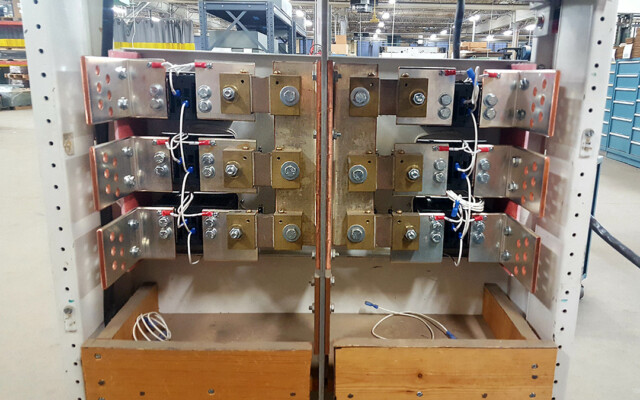

• All fuse positions equipped with metering shunts
• GMT type alarm fuses
• Alarm LED on each fuse block
• Pullout has fuse presence window that allows for easy viewing of installed fuse ampere rating
• Comcoded version available with 70-250A fuse pull holders or 300-800A fuse holders
• Individual fuse holders available in 70-250A or 300-800A sizes
• Paint color matches existing equipment

Applications

• The S3880 6 load fuse panel was designed to accommodate the growing trend toward 6 load BDFB’s.
• Compact design takes advantage of the 4800A capacity in the Tyco Electronics J85500A2, L-11 and L-12 power distribution cabinets
• Bolts to main vertical bus same as standard fuse panels

• Click here for the Equipment Drawing
• Click here for the Schematic Drawing
• Click here for the Component List
• Click here for the Hardware List
• Click here for the Installation Manual
